بيلت إن سيسترن R014367

Product code: R0143

• Suitable to be used with wall mounted WC bowls
•  Ideal for small places
•  For installation in front of solid wall or between two light plasterboard walls according to manual
•  Frame tested for a load of 400 kg
•  Frame corrosion resistant & resistant to scratches
•  Easy and quick installation
•  Depth adjustable outlet bend

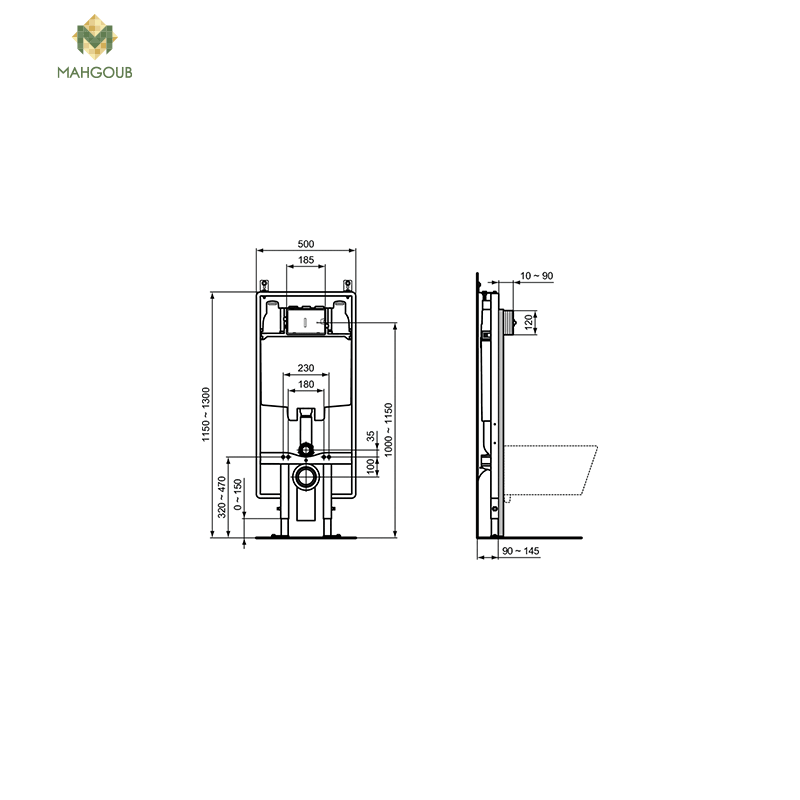

•  Height adjustable from 0 to 150 mm
•  90 mm minimum thick
•  Built-in tank with front mechanical actuation, possible pneumatic or electronic transforming by kits available as separate order
•  Dual flush, pre-set for 6/3 L, simple adjustment to reduce full flush from 6 to 4.5 L
•  Reservoir in polypropylene (PP) very resistant and unalterable to thermal stresses, supplied with anti-condensation lining
•  SmartValve (saves up to 9 litres of water per day), CE marking EN 14055 CL1, silent valve according to the NF standard category Class I, tank 74 mm thickness, 3 water supply connections
• Accessories Included:
• Toilet bowl fixing hardware
• Frame fastening materials
• Toilet bowl inlet and outlet connection (Ø90 x350 mm flush pipe, Ø45 x180 connection pipe)
• Discharge pipe Ø90 x 250, seal for discharge pipe Ø125 mm
• Bowl rubber seal Ø45 mm
• Protective box
• G ½” stop valve, protection sponge for the stop valveOutlet bend and Ø90/110 mm adaptor
• For assembly with control plates (separate order):

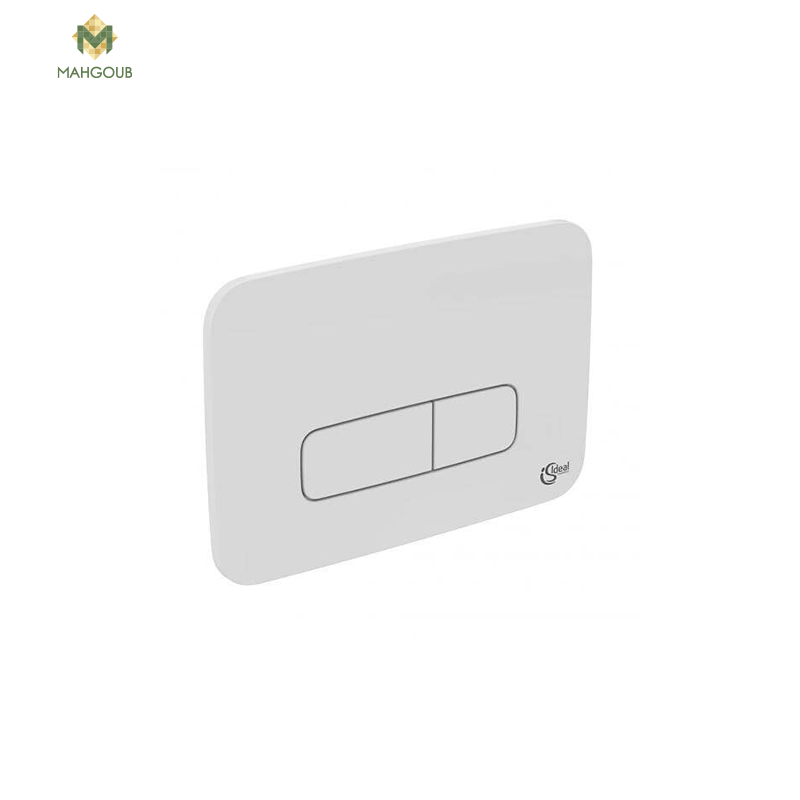

• Mechanical control plates: Oleas™ M1, M2, M3, M4; Solea™ M1, M2; Septa Pro™ M1,M2
• OR
• Mechanical control plates (in combination with SmartFlush kit R018667): Oleas™ SmartFlush M1, M2
• SmartFlush kit (in combination with Mechanical control plates Oleas™ SmartFlush M1, M2) R018667
• OR
• Pneumatic control plates (in combination with Pneumatic conversation kit R014967): Oleas™ P1, P2,P3 Solea™ P1,P2; Septa Pro™ P1, P2, P3, P4, Floor; Septa Pro™ XS P1,P2
• Pneumatic conversation kit (in combination with pneumatic control plates) R014967
• OR
• Touchless control plates Symfo™, Altes™ (in combination with Mains Kit R015067 or SmartForce conversation kit R019167)
• Kit for Touchless/Sensor control plates Mains – 100-240V AC / 6.75V DC R015067
• SmartForce conversation kit – saves energy: SmartForce technology harnesses the power of water in motion to generate enough energy to power a no-touch control plate R019167
• Electronic/IR control plates (in combination with Kit for Electronic/IR control plate conversion R015167): Septa Pro™ E1,E2
• Kit for Electronic/IR control plate conversion R015167
• Optionals:
• – Corner installation kit (Enables the installation of WCs in bathroom corners), compatible with ProSys™ 120 and ProSys™ 80 frames and freestanding frames (R018567)
• – Flow rate reducer (reduces flow rate to avoid splashing), compatible with ProSys™ 80 (R019867)
• – Acoustic insulation for wall-hung pan and bidet (R017467)
• – Noise insulation kit – frame to floor (Avoids direct contact betweenthe frame and the floor) (R010667)
